Flexible feeding systems automatically recognize and position parts of varying sizes and shapes, integrating them quickly and efficiently into assembly processes. Supported by robots and vision systems, they provide flexibility, speed, and cost advantages in production.

Categories: ,

Flexible Feeding Systems





Flexible feeding systems adapt to the variety of products on the assembly line.

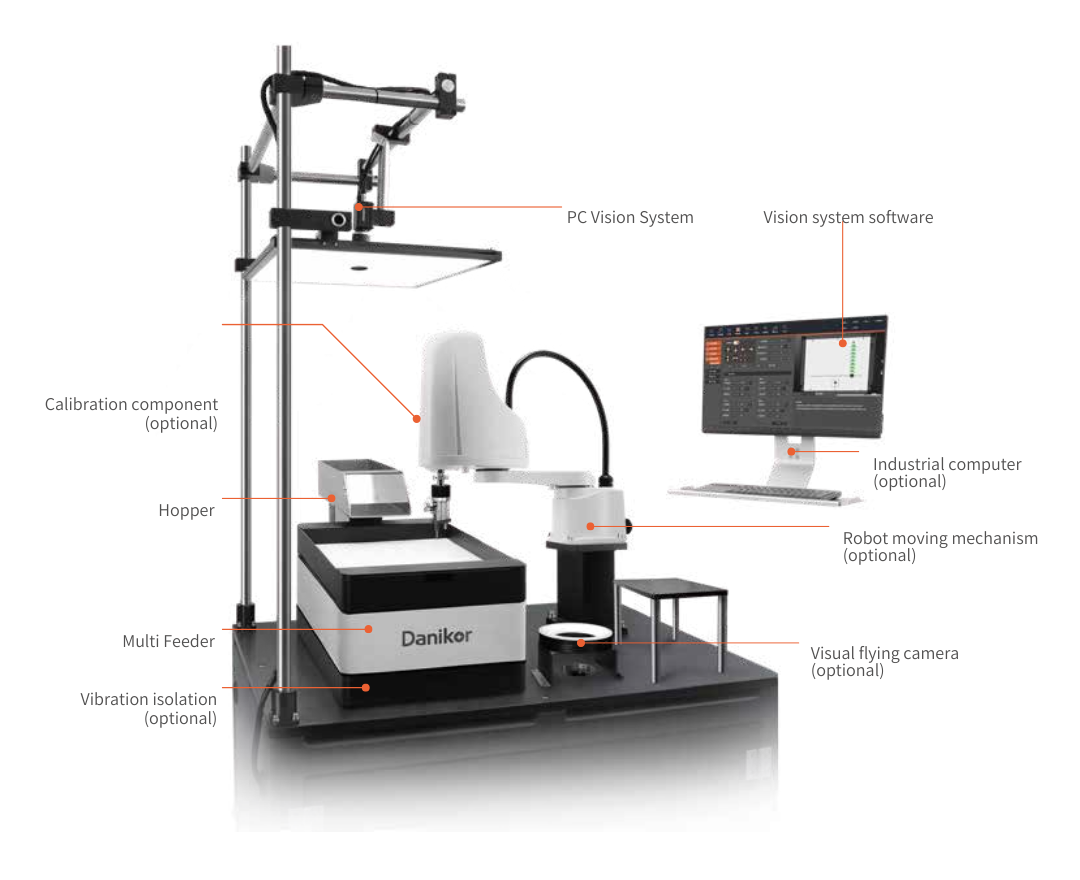

A complete flexible feeding system solution includes a flexible feeder for processing and feeding the part, a vision system for positioning the part for the next process, and a robot. Such a system can overcome the high cost of traditional part feeding by loading a wide variety of parts in various sizes, shapes, and orientations.

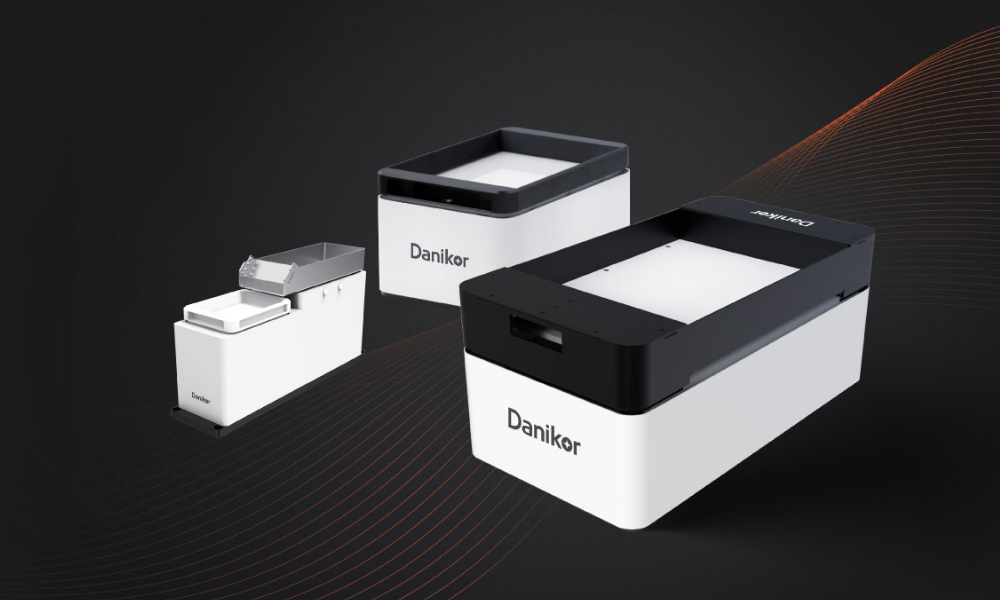

Flex Feeder

Suitable Material Size:0.1-170mm
Danikor’s flex feeder provides flexible parts feeding for any automated application featuring varied parts and frequent changeovers. One flex feeder can replace several conventional feeders on your line. It holds components of arbitrary shapes and materials. Visual part recognition frees you from the limits of mechanical feeding, speeding up configuration and eliminating the need for manual feeder calibration. flex feeder is suitable for all robots automated assembly applications in the automotive, cosmetic, electronic, and medical industries.
Model MTS-U10 MTS-U15 MTS-U20 MTS-U25 MTS-U30 MTS-U35 MTS-U45 MTS-U60
Dimension (L*W*H)（mm） 321*82*160 360*105*176 219*143*116.5 262*180*121.5 298*203*126.5 426.2*229*184.5 506.2*274*206.5 626.2*364*206.5
Pick window (length by width)（mm） 80*60*15 120*90*15 168*122*20 211*159*25 247*182*30 280*225*40 360*270*50 480*360*50
Weight/Kg about 5kg about 6.5kg about 2.9kg about 4kg about 7.5kg about 11kg about 14.5kg about 21.5kg
Voltage DC 24V
Maximum current 5A 10A
Movement Type Move back and forth/side to side,Flip,Center(Long side),Center(Short side)
Operating frequency 30~65Hz 30~55Hz 20~40Hz
Sound Level <70dB（without collision sound)
Permissible load 0.5kg 1kg 1.5kg 2kg
Maximum part weight ≤ 15g ≤ 50g
Signal interaction PC TCP/IP
PLC I/O
DK Hopper / RS485
Other Hopper / I/O

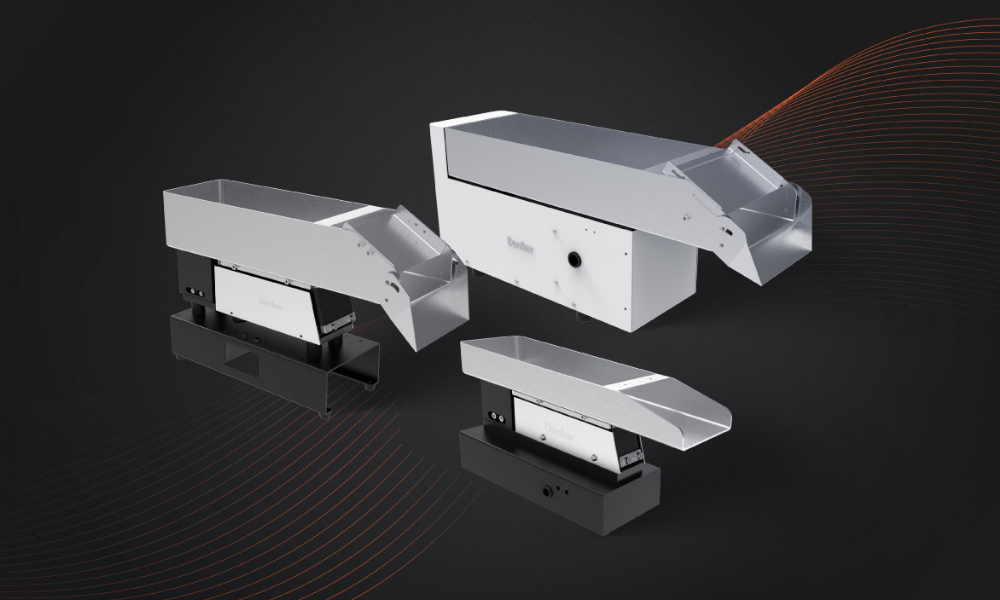

Flexible Feeding Hopper





The flexible hopper is mainly a device for replenishing materials when the quantity of materials in the flexible feeder is insufficient. Stable supply of materials further provides safety guarantee for production.



Model Specification mm(x*y*z) Weight kg Capacity L Power source Rated source
HPS-LV0-1L 350*120*183 7.5 1 DC24V 100W
HPS-LV0-2L 350*120*223 8 2
HPS-LV0-5L 536*164*322 22 5
HPS-LV0-10L 689*194*352 26 10 120W
HPS-LV0-20L 778*258*364 62 20 DC36V 180W
